TPS61232DRCR - Texas Instruments

Description: Switching Voltage Regulators High-eff Sync Step Up Converter

Download TPS61232DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

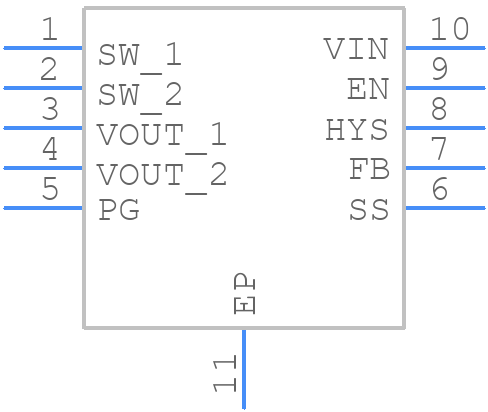

Symbol
TPS61232DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61232DRCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC (S-PVSON-N10) D-shape_1
click to zoom
3D Models
TPS61232DRCR - Texas Instruments - 3D model - Small Outline No-lead - DRC (S-PVSON-N10) D-shape_1
click to zoom

TPS61232DRCR Details

  • Manufacturer Part Number:

    TPS61232DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    5 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS61232DRCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS61232DRCR involves placing the input and output capacitors close to the device, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, choose ones with low ESR and high capacitance. TI recommends using ceramic or polymer capacitors with X5R or X7R dielectrics. The datasheet provides guidelines for capacitor selection.
  • The TPS61232DRCR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Yes, the TPS61232DRCR is designed to withstand vibrations and shocks. However, ensure that the PCB is properly secured and the device is soldered correctly to prevent mechanical stress. TI provides guidelines for vibration and shock testing in the datasheet.
  • Start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and the PCB layout is correct. Check for overheating by measuring the device temperature. Consult the datasheet and application notes for troubleshooting guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS61232DRCR Overview

Use the download button to access the TPS61232DRCR schematic symbol, PCB footprint, and 3D model.
