Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the input voltage, and an ESR of less than 100 mΩ.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. As a general rule, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation.
To ensure stability and prevent oscillations, it's essential to follow the recommended layout guidelines, use the correct input and output capacitors, and ensure that the output voltage is properly decoupled. Additionally, the datasheet provides a stability analysis section that can help designers identify potential stability issues.
While the datasheet specifies an input voltage range of 2.3V to 5.5V, the recommended input voltage range for optimal performance is typically between 3.3V and 4.2V. Operating outside of this range may affect the converter's efficiency and stability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61254YFFR Overview

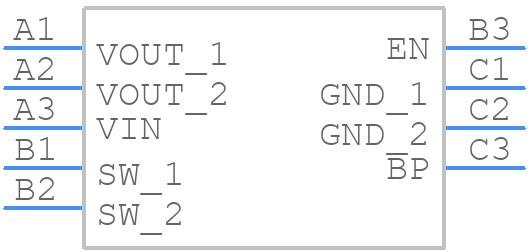

Use the download button to access the TPS61254YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
