Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR ceramic capacitors with a voltage rating of at least 2x the input voltage. A capacitance value of 10uF to 22uF is typically suitable for most applications.
The maximum input voltage rating of the TPS61258YFFR is 15V, but it's recommended to operate the device within the specified input voltage range of 2.5V to 12V to ensure reliable operation and to prevent damage to the IC.
To ensure stability, it's essential to follow the recommended PCB layout, use the correct input and output capacitors, and ensure that the input voltage is within the specified range. Additionally, the output voltage should be set to a value that is within the specified range, and the device should be operated within the recommended temperature range.
The typical efficiency of the TPS61258YFFR is around 90% to 95% depending on the input voltage, output voltage, and load current. The efficiency can be optimized by selecting the right input and output capacitors, and by operating the device within the recommended operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61258YFFR Overview

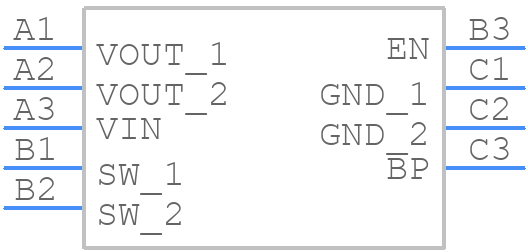

Use the download button to access the TPS61258YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
