Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and the device's power dissipation. As a general rule, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation.
To ensure stability and prevent oscillations, it's recommended to follow the datasheet's guidelines for component selection and PCB layout. Additionally, it's recommended to add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
The maximum output current for continuous operation depends on the specific application and the device's power dissipation. While the datasheet specifies a maximum output current of 2A, it's recommended to derate the output current based on the ambient temperature and the device's power dissipation to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS612592YFFT Overview

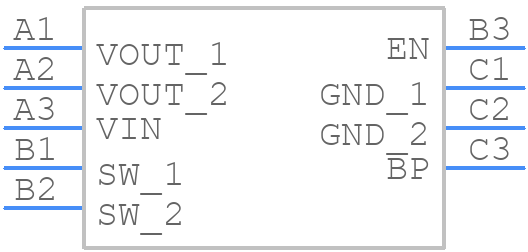

Use the download button to access the TPS612592YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
