Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. TI recommends using low-ESR ceramic capacitors with a voltage rating of at least 2x the input voltage. A capacitance value of 10uF to 22uF is typically suitable for most applications.
The TPS61282AYFFT has an absolute maximum input voltage rating of 6V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
To ensure stability, it's essential to follow the recommended PCB layout, use the correct input and output capacitors, and ensure that the input voltage is within the recommended range. Additionally, the device has a built-in soft-start feature that helps prevent oscillation during startup.
The typical efficiency of the TPS61282AYFFT is around 90% to 95% depending on the input voltage, output voltage, and load current. However, the actual efficiency may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61282AYFFT Overview

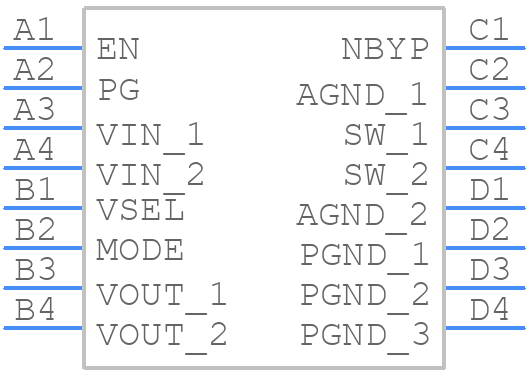

Use the download button to access the TPS61282AYFFT schematic symbol, PCB footprint, and 3D model.
