Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The selection of the inductor depends on the output current, output voltage, and switching frequency. TI provides an inductor selection guide in the datasheet, but it's also important to consider factors such as inductor core material, size, and saturation current. A good starting point is to use an inductor with a value between 1-4.7uH and a saturation current rating above the maximum output current.
The maximum input voltage rating for the TPS61282YFFR is 15V, but it's recommended to keep the input voltage below 12V to ensure reliable operation and to prevent damage to the internal components.
To ensure stability, it's important to follow the recommended component values and PCB layout in the datasheet. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor in parallel with the output capacitor to improve stability.
The TPS61282YFFR is rated for operation up to 125°C, but it's important to consider the derating of the output current and voltage regulation accuracy at high temperatures. It's also important to ensure that the PCB and surrounding components can withstand the high temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS61282YFFR Overview

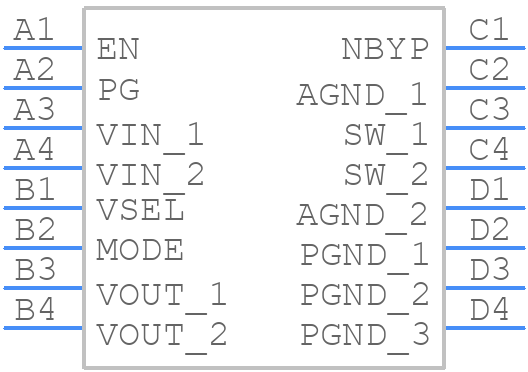

Use the download button to access the TPS61282YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
