Texas Instruments provides a recommended PCB layout in the TPS61310YFFR datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The choice of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. A good starting point is to use low-ESR ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS61310YFFR is rated for operation up to 85°C ambient temperature, but it's important to consider the thermal derating of the device and the PCB layout to ensure reliable operation. It's recommended to keep the junction temperature below 125°C to ensure long-term reliability.
To ensure stability and prevent oscillations, it's important to follow the recommended PCB layout, choose the right input and output capacitors, and ensure that the output voltage is properly decoupled. Additionally, it's recommended to add a small ceramic capacitor (e.g. 10nF) between the VIN and EN pins to filter out noise and prevent oscillations.
The TPS61310YFFR is specified to operate from 2.7V to 5.5V input voltage, but optimal performance is typically achieved between 3.3V and 4.2V input voltage. Operating outside of this range may affect efficiency, output voltage accuracy, and stability.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS61310YFFR Overview

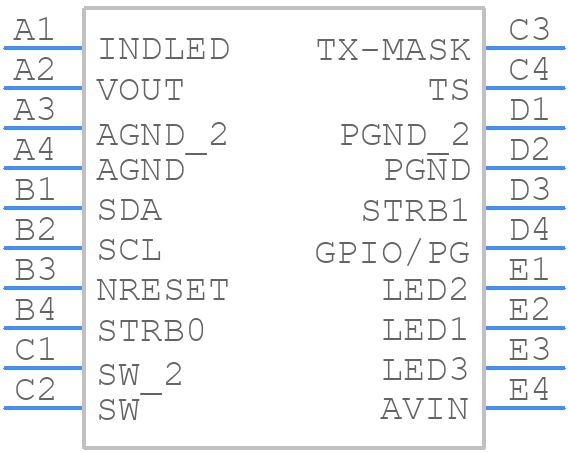

Use the download button to access the TPS61310YFFR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS61,
or try a keyword search, such as Display Drivers
