TPS61379QWRTERQ1 - Texas Instruments

Description: Switching Voltage Regulators 25µA quiescent current synchronous boost converter

Download TPS61379QWRTERQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

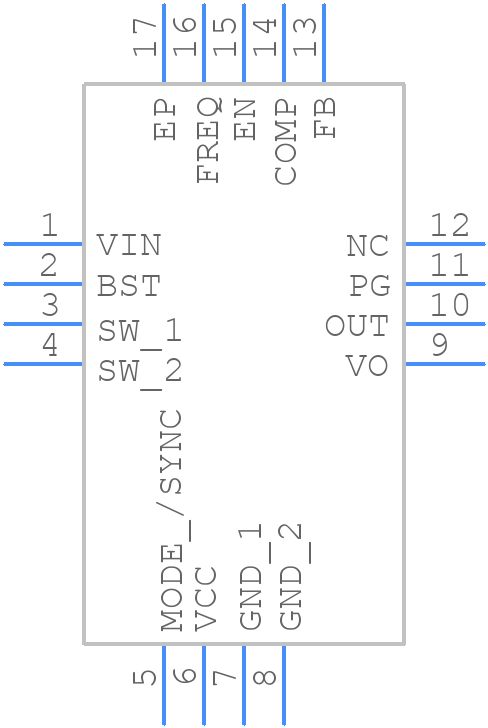

Symbol
TPS61379QWRTERQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS61379QWRTERQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE0016K
click to zoom
3D Models
TPS61379QWRTERQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RTE0016K
click to zoom

TPS61379QWRTERQ1 Details

  • Manufacturer Part Number:

    TPS61379QWRTERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    18.5 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS61379QWRTERQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS61379QWRTERQ1 involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low equivalent series resistance (ESR) and that the input capacitor is properly decoupled. A minimum of 10uF output capacitance is recommended.
  • The maximum input voltage that can be applied to the TPS61379QWRTERQ1 is 5.5V. Exceeding this voltage may cause damage to the device.
  • While it's possible to use a different inductor value, it's not recommended. The recommended inductor value is chosen to ensure optimal performance and stability. Using a different value may affect the device's performance, efficiency, and stability.
  • The output voltage ripple and noise can be calculated using the equations provided in the datasheet. The output voltage ripple is primarily dependent on the output capacitor value, inductor value, and switching frequency. The noise is dependent on the switching frequency, output capacitor value, and the device's internal noise performance.
