ALSO OPERATES IN VOLTAGE MODE AND PWM CONTROL TECHNIQUE ALSO POSSIBLE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
HYSTERETIC CURRENT MODE
Input Voltage-Max:
6 V
Input Voltage-Min:
2.3 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e4
Length:
2 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.2 A
Output Voltage-Max:
3.3 V
Output Voltage-Min:
3.3 V
Output Voltage-Nom:
3.3 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2000 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm
TPS62082DSGT Frequently Asked Questions (FAQs)
A good PCB layout for the TPS62082DSGT involves placing the input and output capacitors close to the device, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the TPS62082DSGT operates within its thermal limits, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device away from other heat sources. Additionally, the device's thermal shutdown feature can be used to prevent overheating.
The recommended input capacitor type for the TPS62082DSGT is a low-ESR ceramic capacitor with a value of 10uF to 22uF. The capacitor should be placed as close to the device's input pins as possible.
To troubleshoot issues with the TPS62082DSGT, start by checking the input voltage, output voltage, and current levels. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Yes, the TPS62082DSGT is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62082DSGT Overview

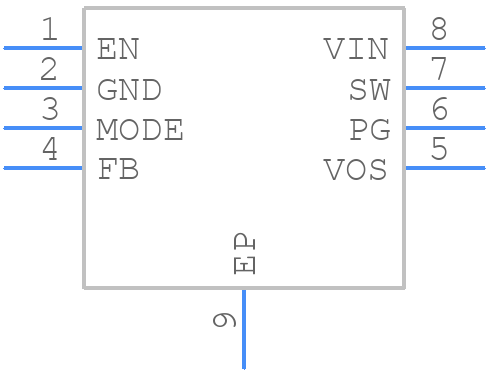

Use the download button to access the TPS62082DSGT schematic symbol, PCB footprint, and 3D model.
