TPS6209733QWRGTRQ1 - Texas Instruments

Description: 2A Automotive Step-Down Converter in 3x3 QFN With Wettable Flanks

Download TPS6209733QWRGTRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

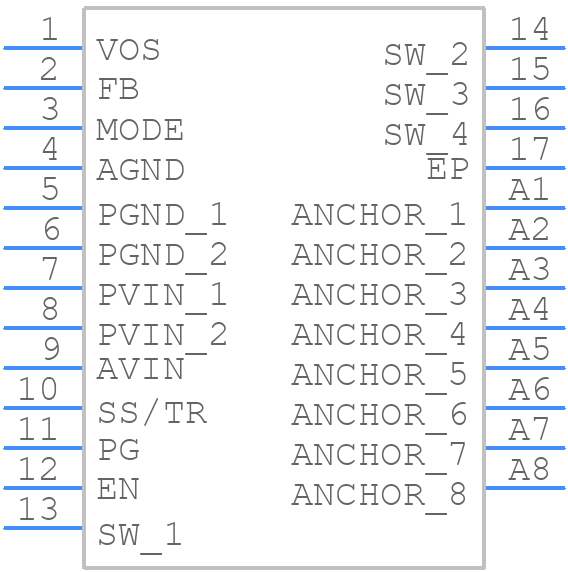

TPS6209733QWRGTRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS6209733QWRGTRQ1 - Texas Instruments PCB footprint - Other - Other - TPS6209733QWRGTRQ1-6
click to zoom
3D Models
TPS6209733QWRGTRQ1 - Texas Instruments - 3D model - Other - TPS6209733QWRGTRQ1-6
click to zoom

TPS6209733QWRGTRQ1 Details

  • Manufacturer Part Number:

    TPS6209733QWRGTRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    6 V

  • Input Voltage-Min:

    2.5 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS6209733QWRGTRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
  • The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the capacitor's ESR and ESL to ensure it can handle the switching frequency.
  • While the datasheet specifies a maximum input voltage of 5.5V, it's recommended to derate the input voltage to 5V or lower to ensure reliable operation and to prevent damage to the device.
  • The TPS62097-QWRGTRQ1 has a thermal pad on the bottom of the package. Ensure good thermal contact between the thermal pad and a heat sink or a thermal via on the PCB. Also, consider the device's thermal resistance and power dissipation to ensure the junction temperature remains within the recommended operating range.
  • A ceramic capacitor with a value of 1uF to 10uF is recommended for input decoupling. The capacitor type should be a low-ESR, high-frequency capacitor, such as an X5R or X7R dielectric capacitor.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS6209733QWRGTRQ1 Overview

Use the download button to access the TPS6209733QWRGTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
