A good PCB layout for the TPS62097RWKR involves placing the input and output capacitors close to the IC, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the TPS62097RWKR operates within its thermal limits, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the ambient temperature within the recommended range. Additionally, reducing the input voltage and output current can help reduce the power dissipation and thermal stress on the device.
Not using the recommended input and output capacitors with the TPS62097RWKR can lead to reduced performance, increased noise, and potential instability. The capacitors help to filter out noise, reduce ripple, and ensure stable operation. Without them, the device may oscillate, overheat, or fail to regulate the output voltage.
Yes, the TPS62097RWKR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and layout guidelines to ensure the device operates within its specifications.
To troubleshoot issues with the TPS62097RWKR, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component placement to ensure they meet the recommended guidelines. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or noise. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62097RWKR Overview

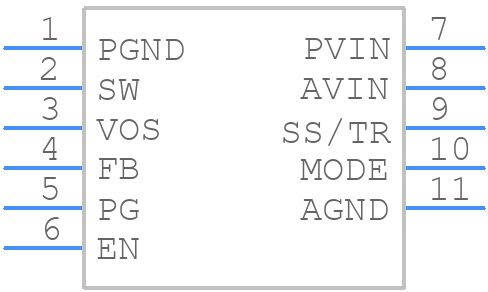

Use the download button to access the TPS62097RWKR schematic symbol and PCB footprint.
