Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS62112RSARG4 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specified temperature range.
To ensure stability, it's recommended to follow the datasheet guidelines for component selection and PCB layout. Additionally, it's recommended to add a small ceramic capacitor (e.g., 10nF) between the VIN and EN pins to filter out noise and prevent oscillation.
The minimum input voltage required for startup is typically around 2.5V, but this can vary depending on the specific application and the output voltage setting. It's recommended to consult the datasheet and perform startup characterization to determine the minimum input voltage required for the specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62112RSARG4 Overview

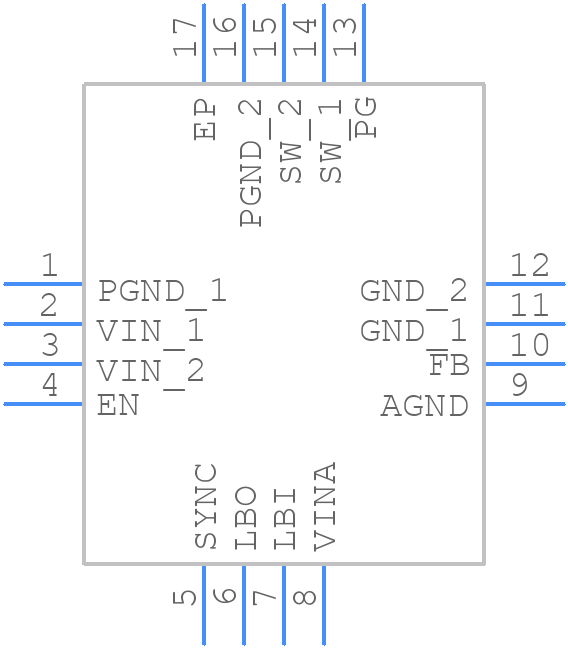

Use the download button to access the TPS62112RSARG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
