TPS62130AQRGTTQ1 - Texas Instruments

Description: TPS62130A-Q1 3 to 17-V 3-A Automotive Step-Down Converter in 3 × 3 QFN Package

Download ECAD Model
Schematic
symbols

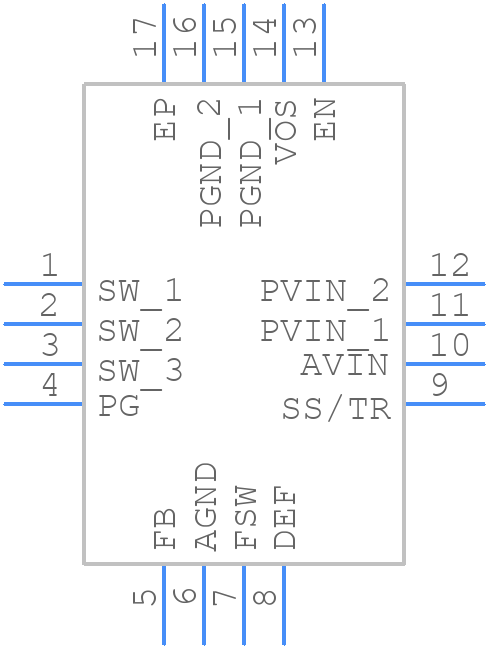

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TPS62130AQRGTTQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C height 1_
click to zoom

3D Models

TPS62130AQRGTTQ1 - Texas Instruments  - 3D model - Quad Flat No-Lead - RGT0016C height 1_
click to zoom

TPS62130AQRGTTQ1 Details

  • Manufacturer Part Number:

    TPS62130AQRGTTQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN,

  • Reach Compliance Code:

    compliant

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    1.05

  • Samacsys Modified On:

    2020-07-22 06:26:10

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 6V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    6 V

  • Output Voltage-Min:

    0.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm
