A good PCB layout for the TPS62130ARGTR involves placing the input and output capacitors close to the device, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
Choose input capacitors with low ESR and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. TI recommends using ceramic or tantalum capacitors with X5R or X7R dielectrics. The datasheet provides guidelines for capacitor selection.
The TPS62130ARGTR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the TPS62130ARGTR is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that your design meets the specific requirements of your application, and consult with TI's support team for guidance on using the device in these environments.
Start by checking the PCB layout, component selection, and soldering quality. Verify that the input voltage and current are within the recommended range. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet, application notes, and TI's support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62130ARGTR Overview

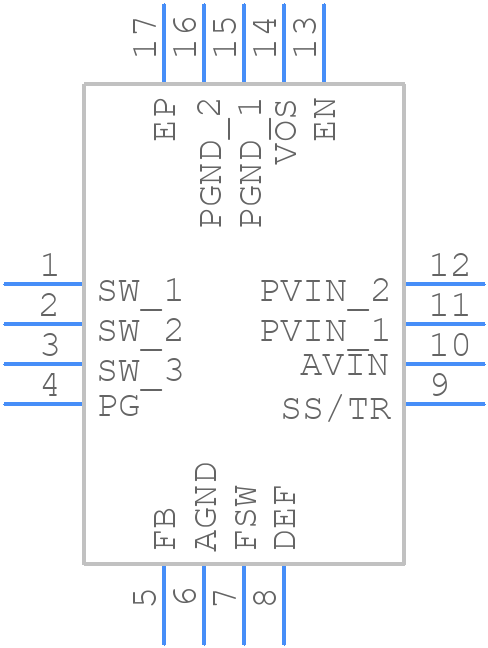

Use the download button to access the TPS62130ARGTR schematic symbol, PCB footprint, and 3D model.
