A good PCB layout for the TPS62132RGTR involves placing the input and output capacitors close to the device, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
Choose capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X5R or X7R ceramic capacitors are good options. The datasheet provides guidance on capacitor selection and calculation of the required capacitance values.
The TPS62132RGTR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the TPS62132RGTR is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended design and layout guidelines, and perform thorough testing and validation to meet the specific requirements of your application.
Start by checking the input voltage, output voltage, and current. Verify that the device is properly soldered and the PCB layout is correct. Check for thermal issues, such as overheating or inadequate heat sinking. Consult the datasheet, application notes, and TI's support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62132RGTR Overview

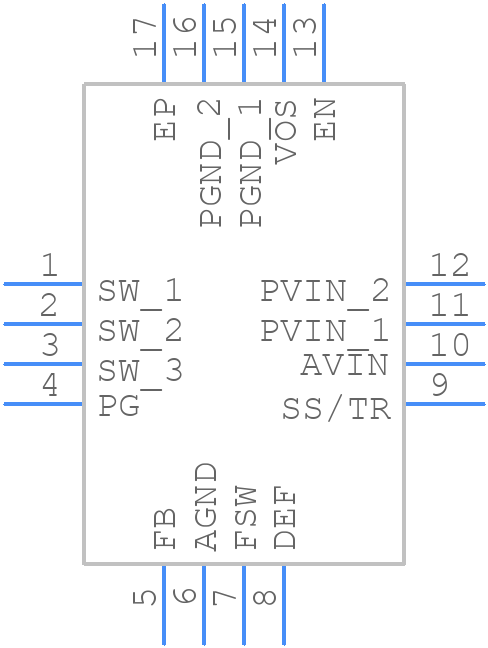

Use the download button to access the TPS62132RGTR schematic symbol, PCB footprint, and 3D model.
