ALSO OPERATES IN VOLT MODE AND PWM CTRL TECHNIQUE ALSO POSBL
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
HYSTERETIC CURRENT MODE
Input Voltage-Max:
17 V
Input Voltage-Min:
3 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-PDSO-N8
JESD-609 Code:
e4
Length:
2 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Output Voltage-Max:
5 V
Output Voltage-Min:
5 V
Output Voltage-Nom:
5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2250 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
2 mm
TPS62163DSGT Frequently Asked Questions (FAQs)
A good PCB layout for the TPS62163DSGT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended output capacitor selection guidelines, use a minimum output capacitance of 10uF, and ensure the output capacitor's ESR is within the recommended range. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillations.
The TPS62163DSGT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and consider derating the device's performance at high temperatures.
Yes, the TPS62163DSGT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow proper design and testing procedures to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the TPS62163DSGT, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and current, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62163DSGT Overview

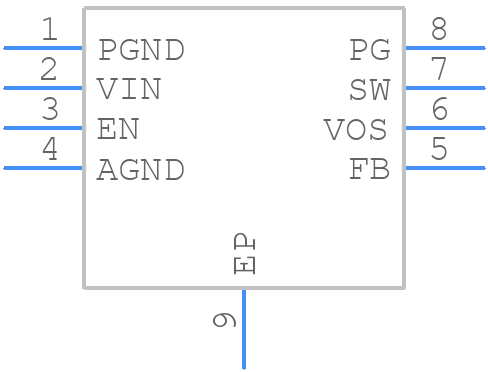

Use the download button to access the TPS62163DSGT schematic symbol, PCB footprint, and 3D model.
