Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS62441QWRQRRQ1 is rated for operation up to 125°C, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the IC is operated within its specified thermal limits.
To ensure stability and prevent oscillations, it's recommended to follow the stability analysis guidelines in the datasheet, including the use of the recommended output capacitor and resistor values, and to ensure that the input voltage is within the specified range. Additionally, it's recommended to use a low-ESR output capacitor and to minimize the output capacitor's equivalent series resistance (ESR).
The recommended input voltage range for optimal performance is 2.7V to 5.5V, but the IC can operate with input voltages as low as 2.5V. However, the output voltage regulation and efficiency may be affected at lower input voltages.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62441QWRQRRQ1 Overview

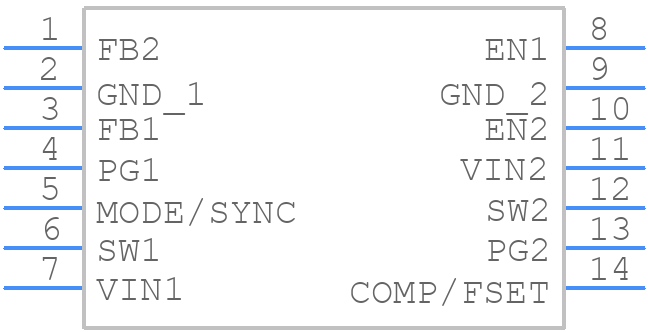

Use the download button to access the TPS62441QWRQRRQ1 schematic symbol, PCB footprint, and 3D model.
