Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The choice of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. TI recommends using low-ESR ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. A good starting point is to use 10uF to 22uF capacitors for both input and output.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general rule, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize thermal stress.
To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, make sure to use a sufficient output capacitor with a low ESR, and consider adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
While the datasheet specifies an input voltage range of 2.5V to 6V, the recommended input voltage range for optimal performance is typically between 3V and 5.5V. Operating outside this range may affect efficiency, output voltage regulation, and overall performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62441RQRR Overview

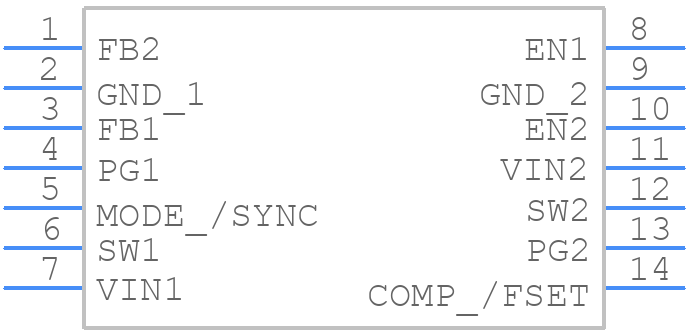

Use the download button to access the TPS62441RQRR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
