The maximum input voltage that can be applied to the TPS627451DSSR is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
To ensure stability, it's essential to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a low-ESR output capacitor, and minimizing the loop area of the power traces. Additionally, make sure to decouple the input voltage with a capacitor and use a low-impedance input source.
The minimum output capacitance required for the TPS627451DSSR is 10uF, as specified in the datasheet. However, it's recommended to use a higher output capacitance, such as 22uF or 47uF, to ensure stable operation and to improve the transient response of the device.
The TPS627451DSSR is rated for operation up to 125°C, but it's essential to consider the derating of the device's performance and reliability at high temperatures. Make sure to check the datasheet for the temperature derating curves and to ensure that the device is properly heatsinked if it will be operating in a high-temperature environment.
The output voltage of the TPS627451DSSR can be calculated using the following formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors used to set the output voltage. Make sure to choose the correct values of R1 and R2 to achieve the desired output voltage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS627451DSSR Overview

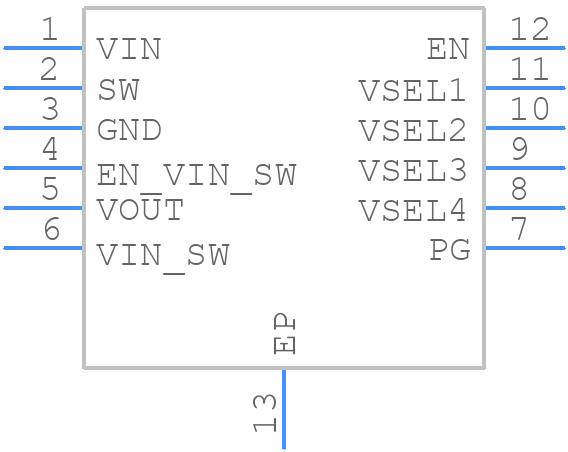

Use the download button to access the TPS627451DSSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
