TPS62745DSSR - Texas Instruments

Description: 3.3V-10V input, 300mA Ultra Low Iq step-down converter with VSEL and input voltage switch

Download TPS62745DSSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

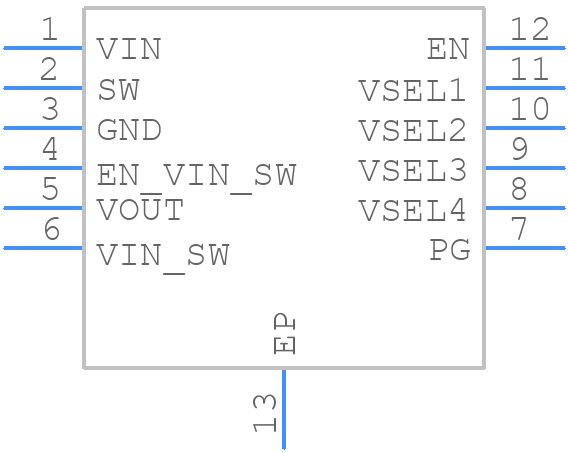

Symbol
TPS62745DSSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS62745DSSR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSS0012A
click to zoom
3D Models
TPS62745DSSR - Texas Instruments - 3D model - Small Outline No-lead - DSS0012A
click to zoom

TPS62745DSSR Details

  • Manufacturer Part Number:

    TPS62745DSSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    3.3 V

  • Input Voltage-Nom:

    6 V

  • JESD-30 Code:

    R-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.3 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS62745DSSR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS62745DSSR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The datasheet provides more information on capacitor selection.
  • The TPS62745DSSR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system.
  • Yes, the TPS62745DSSR is designed to operate in high-vibration environments. However, it's crucial to ensure the device is properly soldered and the PCB is securely mounted to withstand vibrations.
  • TI provides a troubleshooting guide in the datasheet and application notes. Common issues can be resolved by checking the input voltage, output load, and PCB layout. In some cases, it may be necessary to consult with TI's technical support team.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS62745DSSR Overview

Use the download button to access the TPS62745DSSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
