ALSO OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 5.1V ; ALSO HAS PWM CNTRL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
VOLTAGE-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
6 V
Input Voltage-Min:
2.9 V
Input Voltage-Nom:
5 V
JESD-30 Code:
S-PDSO-N10
JESD-609 Code:
e4
Length:
2.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
10
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.3 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
0.8 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2500 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.5 mm
TPS62751DSKR Frequently Asked Questions (FAQs)
A good PCB layout for the TPS62751DSKR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the TPS62751DSKR output voltage, it's essential to use the recommended output capacitor value and type, and to place it close to the device. Additionally, the input voltage should be stable and within the recommended range, and the device should be operated within its recommended temperature range.
The TPS62751DSKR can handle input voltages up to 17V, but it's recommended to operate it within the recommended input voltage range of 2.7V to 15V for optimal performance and reliability.
Yes, the TPS62751DSKR can be used in high-temperature applications, but it's essential to ensure that the device is operated within its recommended temperature range of -40°C to 125°C. Additionally, the device's power dissipation should be considered to avoid overheating.
The power dissipation of the TPS62751DSKR can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Pd is the power dissipation, Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62751DSKR Overview

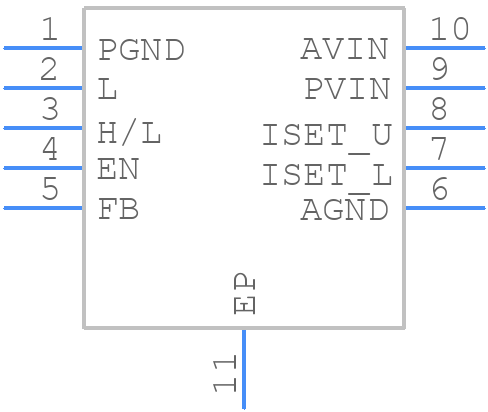

Use the download button to access the TPS62751DSKR schematic symbol, PCB footprint, and 3D model.
