Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS628113HQWRWYRQ1 is rated for operation up to 125°C, but the maximum ambient temperature for reliable operation depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure reliable operation.
To ensure EMC compliance, it's recommended to follow the layout and design guidelines in the datasheet, use a shielded inductor, and add EMI filters if necessary. Additionally, it's recommended to perform EMC testing and simulation to ensure compliance with relevant standards.
The recommended input voltage range for optimal performance is 2.7V to 5.5V, but the device can operate down to 2.3V with reduced performance. It's recommended to consult the datasheet and application notes for more information on input voltage range and performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS628113HQWRWYRQ1 Overview

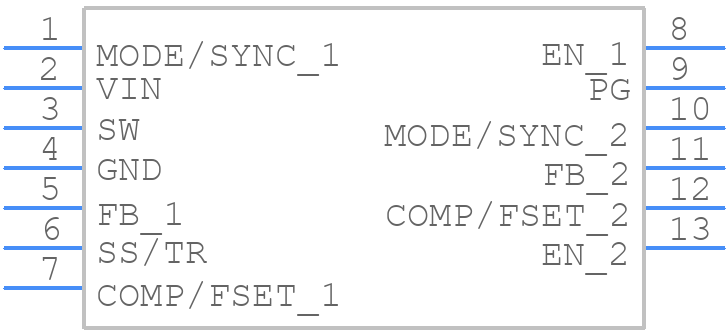

Use the download button to access the TPS628113HQWRWYRQ1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
