TPS62821DLCR - Texas Instruments

Description: 2.4V-5.5V input, 1A step-down converter With 1% Accuracy in 1.5x2mm QFN

Download TPS62821DLCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

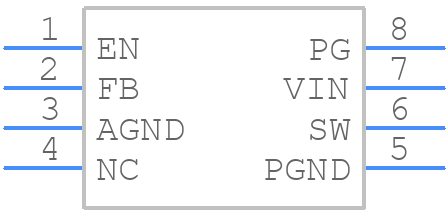

TPS62821DLCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS62821DLCR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DLC0008A
click to zoom
3D Models
TPS62821DLCR - Texas Instruments - 3D model - Small Outline No-lead - DLC0008A
click to zoom

TPS62821DLCR Details

  • Manufacturer Part Number:

    TPS62821DLCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OUTPUT VOLTAGE= 0.6V TO 4V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.4 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.06,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

TPS62821DLCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS62821DLCR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the loop area of the power traces to reduce EMI. TI provides a recommended PCB layout in the datasheet and application notes.
  • Choose input capacitors with a low ESR and a voltage rating that exceeds the maximum input voltage. For output capacitors, choose ones with a low ESR and a voltage rating that exceeds the output voltage. The datasheet provides guidelines for capacitor selection.
  • The TPS62821DLCR has an operating junction temperature range of -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and thermal design. TI provides thermal design guidelines in the datasheet and application notes.
  • To ensure stability, follow the recommended PCB layout, choose the right input and output capacitors, and ensure the output voltage is within the specified range. Additionally, add a small ceramic capacitor (e.g., 10nF) between the VOUT and GND pins to improve stability.
  • The TPS62821DLCR has a maximum output current of 2A. For high-current applications, consider using multiple devices in parallel or using a different device with a higher current rating. TI provides guidance on paralleling devices in the datasheet and application notes.
