A good PCB layout for the TPS62823DLCT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended output capacitor selection guidelines, use a minimum output capacitance of 10uF, and ensure the output capacitor's ESR is within the recommended range. Additionally, the input voltage should be within the recommended range, and the device should be operated within its specified temperature range.
The TPS62823DLCT can handle a maximum input voltage of 5.5V. Exceeding this voltage may damage the device. It's essential to ensure the input voltage is within the recommended range to ensure reliable operation.
The TPS62823DLCT is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to follow the recommended operating temperature range and consider the device's thermal characteristics when designing the system.
To troubleshoot issues with the TPS62823DLCT, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and ensure it meets the recommended guidelines. Verify the output capacitor selection and ESR values. If issues persist, consult the datasheet and application notes or contact Texas Instruments' support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62823DLCT Overview

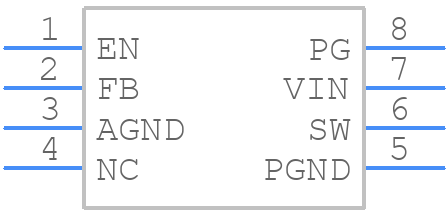

Use the download button to access the TPS62823DLCT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
