Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, follow the recommended component values and PCB layout, and make sure the output capacitor has a low ESR. Additionally, the datasheet provides a stability analysis section that can help you determine the stability of the device in your specific application.
The maximum input voltage rating of the TPS628302ADRLR is 5.5V, but it's recommended to operate the device within the recommended input voltage range of 2.3V to 5.5V to ensure optimal performance and reliability.
The TPS628302ADRLR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to consider using thermal management techniques, such as heat sinks or thermal interfaces, to keep the device within its recommended operating temperature range.
To troubleshoot issues with the TPS628302ADRLR, follow a systematic approach, starting with checking the input voltage, output voltage, and current. Verify that the device is properly soldered and that the PCB layout follows the recommended guidelines. Use oscilloscopes and other measurement tools to analyze the device's behavior and identify the root cause of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS628302ADRLR Overview

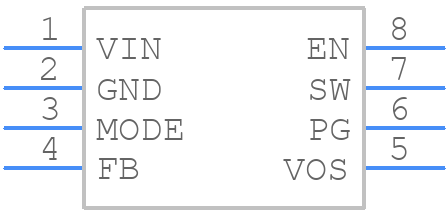

Use the download button to access the TPS628302ADRLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
