A good PCB layout for the TPS62840DLCR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
The choice of input and output capacitors depends on the specific application requirements. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and output. The capacitor selection guide in the datasheet can help with selecting the right capacitors.
The TPS62840DLCR is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
Yes, the TPS62840DLCR is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly soldered and the PCB is securely mounted to withstand vibrations. TI provides guidance on vibration testing and PCB design in the application notes.
TI provides a troubleshooting guide in the datasheet and application notes. Common issues can be caused by incorrect PCB layout, inadequate input and output capacitors, or incorrect component selection. A systematic approach to troubleshooting, including checking the input voltage, output voltage, and current consumption, can help identify and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62840DLCR Overview

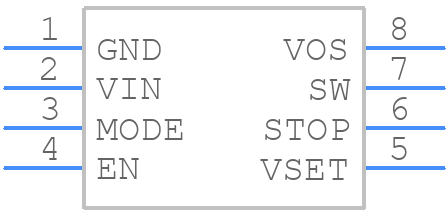

Use the download button to access the TPS62840DLCR schematic symbol, PCB footprint, and 3D model.
