Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as output voltage, output current, and ripple requirements. TI provides guidelines for capacitor selection in the datasheet, but it's also recommended to consult with capacitor manufacturers and perform simulations to ensure the best performance.
The TPS6285020 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's recommended to consult with TI's thermal design guidelines and perform thermal simulations to ensure the device operates within its specified temperature range.
Proper thermal management is critical for the TPS6285020. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. TI provides thermal design guidelines and thermal models that can be used to simulate the device's thermal performance.
The recommended input voltage range for the TPS6285020 is 2.7V to 5.5V, but the device can operate from 2.3V to 5.5V. However, the output voltage and current capabilities may be limited at lower input voltages. It's recommended to consult with the datasheet and perform simulations to ensure the device meets the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS6285020MQDRLRQ1 Overview

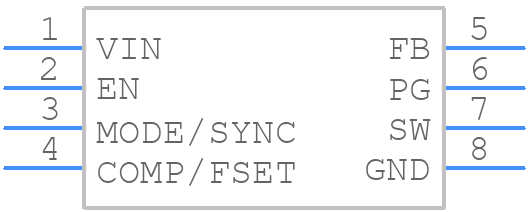

Use the download button to access the TPS6285020MQDRLRQ1 schematic symbol, PCB footprint, and 3D model.
