Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
The datasheet provides a list of recommended inductors, but you can also use the following guidelines: choose an inductor with a high saturation current rating, low DC resistance, and a suitable inductance value (typically between 1-10uH). You can also use online inductor selection tools or consult with the inductor manufacturer.
The datasheet specifies an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. As a general rule, it's recommended to derate the device's power dissipation at higher ambient temperatures to ensure reliable operation.
Yes, the TPS62850220QDRLRQ1 is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
Start by checking the PCB layout and component selection, ensuring that they meet the recommended guidelines. Then, use a oscilloscope to measure the output voltage and current, and check for any signs of oscillation or noise. You can also use thermal imaging or temperature measurement tools to identify overheating issues. Consult the datasheet and application notes for more troubleshooting guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62850220QDRLRQ1 Overview

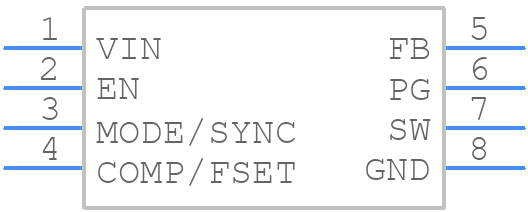

Use the download button to access the TPS62850220QDRLRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
