The maximum input voltage that can be applied to the TPS62851DRLR is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
To optimize the layout for the TPS62851DRLR, follow the guidelines provided in the datasheet and application notes. Keep the input and output capacitors close to the device, use a solid ground plane, and minimize the length of the traces. Additionally, use a shielded inductor and keep it away from sensitive analog signals.
The recommended output capacitor value is 10uF to 22uF, with an ESR of 10mΩ to 50mΩ. A ceramic capacitor with an X5R or X7R dielectric is recommended. The output capacitor should be placed close to the output pin of the device to minimize noise and improve stability.
To ensure stability, follow the guidelines provided in the datasheet and application notes. Use the recommended output capacitor value and type, and keep the output capacitor close to the output pin. Additionally, ensure that the input voltage is within the recommended range, and the device is operated within the specified temperature range.
The maximum output current that can be drawn from the TPS62851DRLR is 2A. However, the output current should be derated based on the ambient temperature and the input voltage. Refer to the datasheet for the output current derating curve.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS628511DRLR Overview

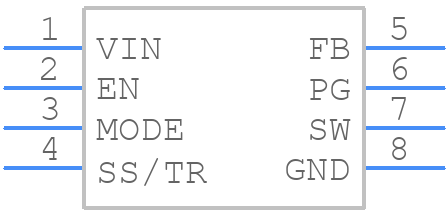

Use the download button to access the TPS628511DRLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
