The maximum input voltage that can be applied to the TPS6286810CRQYR is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor, such as a 10uF ceramic capacitor, and placing it close to the output pin. Additionally, ensure that the input capacitor is properly sized and placed to minimize input voltage ripple.
The minimum input capacitance required for the TPS6286810CRQYR is 1uF, as specified in the datasheet. However, it's recommended to use a higher value, such as 4.7uF or 10uF, to ensure stable operation and to filter out input voltage noise.
The TPS6286810CRQYR is rated for operation up to 125°C, but it's essential to consider the thermal design and layout of your system to ensure that the device does not exceed its maximum junction temperature. You may need to add thermal vias, heat sinks, or other thermal management techniques to ensure reliable operation in high-temperature environments.
The output voltage of the TPS6286810CRQYR is determined by the resistor divider network connected to the FB pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS6286810CRQYR Overview

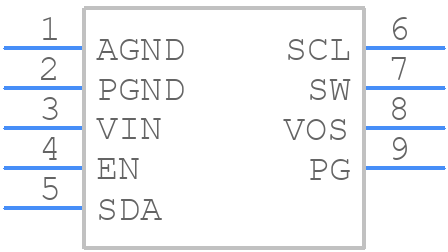

Use the download button to access the TPS6286810CRQYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
