The maximum input voltage that can be applied to the TPS628682ARQYR is 5.5V, as specified in the datasheet. However, it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor, such as a 10uF ceramic capacitor, and placing it close to the output pin. Additionally, the input capacitor should be selected based on the input voltage and current requirements.
The TPS628682ARQYR is rated for operation up to 125°C, but it's essential to consider the thermal design and layout of the PCB to ensure reliable operation at high temperatures. The device's power dissipation and thermal resistance should be taken into account, and the recommended operating conditions should be followed to prevent overheating.
The output voltage of the TPS628682ARQYR can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors connected to the FB pin. The datasheet provides a detailed explanation of the output voltage calculation and the recommended resistor values for different output voltage settings.
The typical quiescent current of the TPS628682ARQYR is around 20uA, as specified in the datasheet. However, this value can vary depending on the input voltage, output voltage, and operating conditions. It's essential to consider the quiescent current in power-sensitive applications to ensure efficient operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS628682ARQYR Overview

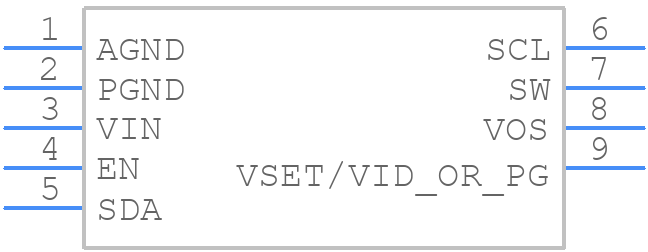

Use the download button to access the TPS628682ARQYR schematic symbol, PCB footprint, and 3D model.
