Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS6286920CRQYR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's recommended to consult the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
To ensure stability, it's recommended to follow the guidelines in the datasheet for selecting the output capacitor and the feedback resistors. Additionally, it's recommended to use a compensation capacitor (CFF) to ensure stability. The value of CFF can be calculated using the equations provided in the datasheet.
The TPS6286920CRQYR is rated for a maximum output current of 2A, but the actual output current capability may be limited by the input voltage, output voltage, and the thermal design of the system. It's recommended to consult the datasheet and to perform thermal simulations to ensure the device operates within its specified current rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS6286920CRQYR Overview

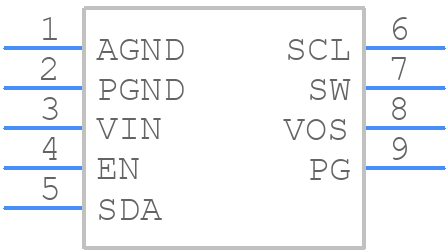

Use the download button to access the TPS6286920CRQYR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
