Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using a 4-layer stackup with a dedicated power plane.
The selection of the output capacitor depends on the output voltage, output current, and ripple requirements. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the ESR and ESL of the capacitor to ensure it can handle the switching frequency.
While the datasheet specifies a maximum input voltage of 5.5V, it's recommended to derate the input voltage to 5V to ensure reliable operation and to prevent damage to the device.
The TPS62876QWRZVRQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values can be calculated based on the desired overcurrent threshold and the internal OCP voltage reference.
The thermal derating of the device is specified in the datasheet as 30°C/W. To calculate the maximum ambient temperature, use the formula: T_Ambient = T_Junction - (P_Dissipation x θ_JA), where T_Junction is the maximum junction temperature (150°C), P_Dissipation is the power dissipation of the device, and θ_JA is the thermal derating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62876QWRZVRQ1 Overview

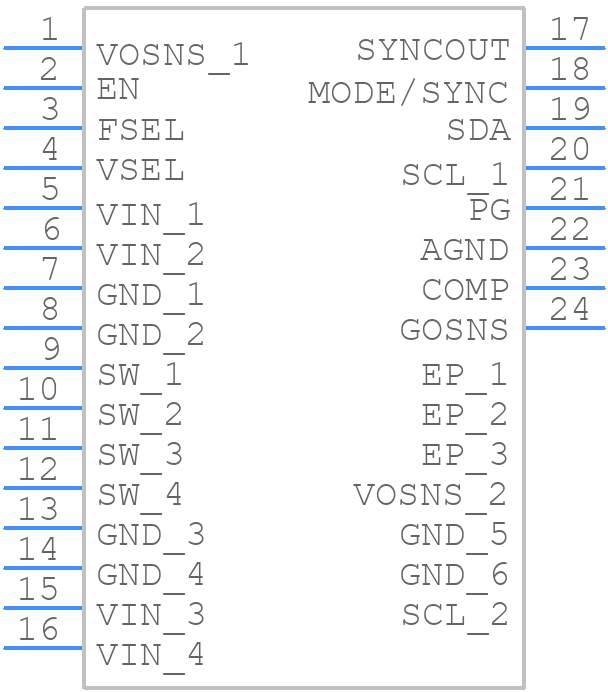

Use the download button to access the TPS62876QWRZVRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
