Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage drops and ensure stable operation. Output capacitors should have low ESR and high capacitance to filter out noise and ripple. Consult the datasheet and capacitor manufacturer's recommendations for specific values and types.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the maximum ambient temperature for reliable operation. Typically, it's recommended to keep the ambient temperature below 85°C to ensure long-term reliability and prevent thermal shutdown.
Proper thermal management is crucial to prevent overheating and ensure reliable operation. Use a heat sink or thermal pad to dissipate heat, and ensure good airflow around the device. Consider the thermal resistance of the package and the PCB layout to minimize thermal impedance.
The TPS62901QRYTRQ1 has a low quiescent current of 2.5 μA, which is beneficial for battery-powered applications. However, it's essential to consider the overall system power consumption, including the load current, to estimate the impact on battery life. Consult the datasheet and perform power budgeting to ensure optimal system design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS62901QRYTRQ1 Overview

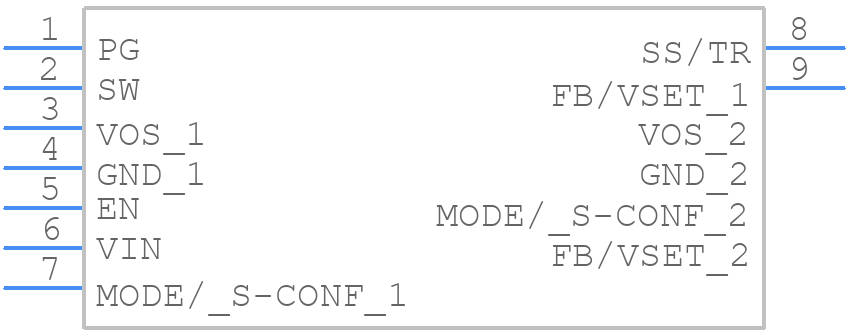

Use the download button to access the TPS62901QRYTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
