TPS62903RPJR - Texas Instruments

Description: Conv DC-DC 3V to 17V Synchronous Step Down Single-Out 0.4V to 5.5V 3A 9-Pin VQFN-HR T/R

Download TPS62903RPJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

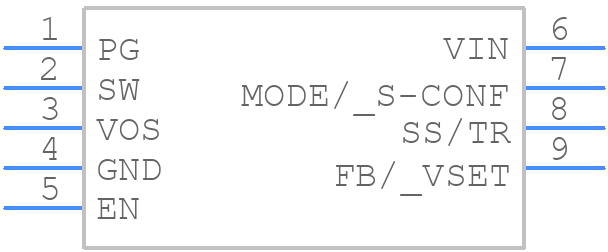

TPS62903RPJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS62903RPJR - Texas Instruments PCB footprint - Other - Other - RPJ0009A_2021_1
click to zoom
3D Models
TPS62903RPJR - Texas Instruments - 3D model - Other - RPJ0009A_2021_1
click to zoom

TPS62903RPJR Details

  • Manufacturer Part Number:

    TPS62903RPJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT/VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PBCC-N9

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    0.4 V

  • Output Voltage-Nom:

    1.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.5 mm

TPS62903RPJR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS62903RPJR is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • To ensure stability, it's essential to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the output capacitor should be placed as close to the output pin as possible.
  • The TPS62903RPJR can deliver up to 3A of output current, but it's recommended to keep it below 2.5A for optimal performance and thermal management.
  • To minimize noise and EMI, it's essential to follow a star-grounding layout, keep the input and output capacitors close to the device, and use a solid ground plane. Additionally, avoid routing sensitive signals near the inductor and use a shielded inductor if possible.
  • The TPS62903RPJR has a thermal derating of 6.4mA/°C above 25°C. This means that for every degree above 25°C, the maximum output current will decrease by 6.4mA. It's essential to consider this derating when designing the system to ensure reliable operation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS62903RPJR Overview

Use the download button to access the TPS62903RPJR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS62, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
