Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The datasheet provides guidelines for capacitor selection, but it's also important to consider factors such as capacitor type (e.g. ceramic, electrolytic), voltage rating, and ESR (equivalent series resistance). A good starting point is to use a 10uF ceramic capacitor for the input and a 22uF ceramic capacitor for the output.
The datasheet specifies an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature depends on the specific application and the device's power dissipation. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
The TPS63010YFFT is a QFN package device, which can be sensitive to vibration and mechanical stress. However, Texas Instruments provides guidance on vibration testing and recommends using a robust PCB design and attachment method to minimize the risk of device failure in high-vibration environments.
Texas Instruments provides a troubleshooting guide in the datasheet, which covers common issues and their possible causes. Additionally, engineers can use tools such as oscilloscopes and thermal cameras to diagnose issues, and should also check the PCB layout, component selection, and input/output connections for any errors or omissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS63010YFFT Overview

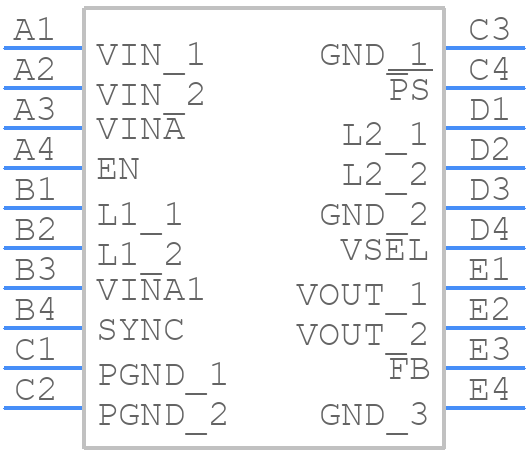

Use the download button to access the TPS63010YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
