Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of the inductor depends on the specific requirements of your application, such as the input voltage, output voltage, and output current. Texas Instruments provides a list of recommended inductors in the datasheet, but you may also need to consider factors such as inductor size, core material, and DC resistance.
The TPS63011YFFT is rated for operation up to 85°C ambient temperature, but the actual operating temperature may be limited by the specific application and the thermal design of the PCB.
Proper thermal management is critical for the reliability and performance of the TPS63011YFFT. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. The thermal design of the PCB should also be optimized to minimize thermal resistance.
The recommended input capacitor type is a ceramic capacitor with a value of 10uF to 22uF. The capacitor should be rated for the maximum input voltage and have a low ESR to minimize voltage ripple and ensure stable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS63011YFFT Overview

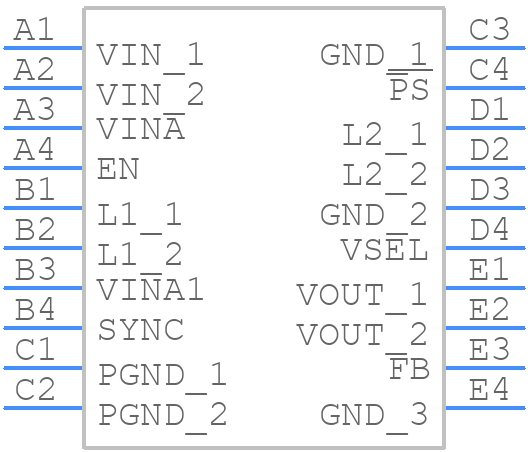

Use the download button to access the TPS63011YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
