ALSO OPERATES IN PFM CONTROL TECHNIQUE, ALSO OPERATES IN ADJUSTABLE MODE FROM 1.2 TO 5.5V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
1.8 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
R-PDSO-N14
JESD-609 Code:
e4
Length:
4 mm
Moisture Sensitivity Level:
2
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
1.2 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC14,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
2600 kHz
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS63020QDSJTQ1 Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS63020QDSJTQ1 is 17V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 15V for optimal performance and reliability.
To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. Additionally, make sure to use a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value to filter out any noise and ripple.
The TPS63020QDSJTQ1 can deliver up to 2A of output current, depending on the input voltage and output voltage settings. However, it's recommended to derate the output current based on the ambient temperature and other operating conditions to ensure reliable operation.
The TPS63020QDSJTQ1 has a fixed output voltage option, but it can be configured for a specific output voltage by using an external resistor divider network. The datasheet provides a formula to calculate the required resistor values based on the desired output voltage.
The typical efficiency of the TPS63020QDSJTQ1 varies depending on the input voltage, output voltage, and output current. However, according to the datasheet, the device can achieve an efficiency of up to 95% at a 5V input and 3.3V output with a 1A load.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS63020QDSJTQ1 Overview

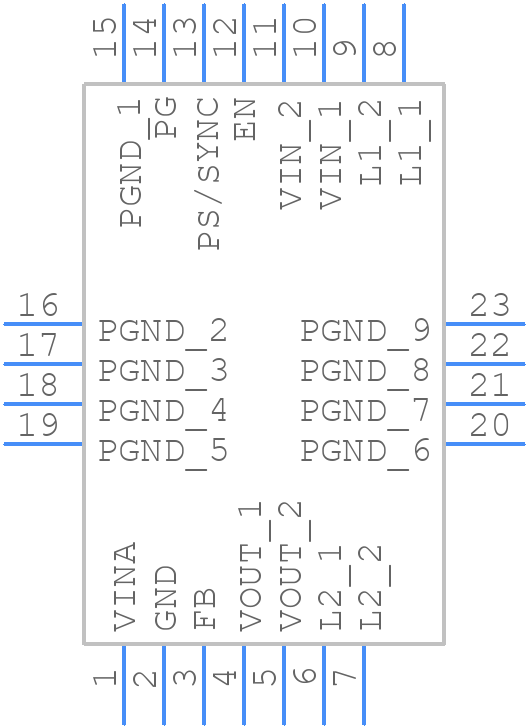

Use the download button to access the TPS63020QDSJTQ1 schematic symbol, PCB footprint, and 3D model.
