TPS630242YFFR - Texas Instruments

Description: Conv DC-DC 2.3V to 5.5V Step Down/Step Up Single-Out 3.3V 1.5A 20-Pin DSBGA T/R

Download TPS630242YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

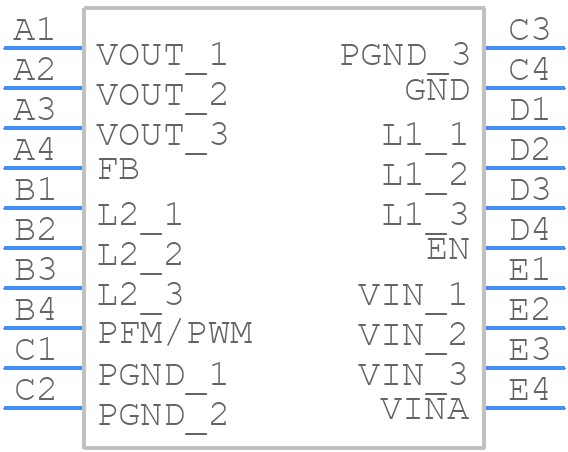

TPS630242YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS630242YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF (XBGA-N20)
click to zoom
3D Models
TPS630242YFFR - Texas Instruments - 3D model - BGA - YFF (XBGA-N20)
click to zoom

TPS630242YFFR Details

  • Manufacturer Part Number:

    TPS630242YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN PFM CONTROL TECHNIQUE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    2.8 V

  • JESD-30 Code:

    R-XBGA-B20

  • JESD-609 Code:

    e1

  • Length:

    2.086 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.5 A

  • Output Voltage-Max:

    3.3 V

  • Output Voltage-Min:

    3.3 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Current-Max (Isup):

    2700 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2500 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.766 mm

TPS630242YFFR Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the TPS630242YFFR is 17V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 2.5V to 15V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet. This includes using a suitable output capacitor with a low equivalent series resistance (ESR) and a sufficient capacitance value, as well as placing the input and output capacitors close to the device.
  • The TPS630242YFFR can deliver up to 2A of output current, depending on the input voltage and output voltage settings. However, it's essential to ensure that the device is operated within its thermal limits to prevent overheating and ensure reliable operation.
  • The TPS630242YFFR has a fixed output voltage option, but it can be configured for a specific output voltage by using an external resistor divider network. The datasheet provides a formula to calculate the required resistor values for a specific output voltage. Additionally, the device has an enable pin that can be used to turn the output on or off.
  • The quiescent current of the TPS630242YFFR is typically around 20μA, depending on the input voltage and output voltage settings. This is relatively low compared to other DC-DC converters, making the device suitable for battery-powered applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS630242YFFR Overview

Use the download button to access the TPS630242YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
