ALSO OPERATES IN PFM CONTROL TECHNIQUE; ADJUSTABLE OUTPUT MODE FROM 2.5 TO 3.6 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.3 V
Input Voltage-Nom:
2.8 V
JESD-30 Code:
R-XBGA-B20
JESD-609 Code:
e1
Length:
2.086 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1.5 A
Output Voltage-Max:
3.6 V
Output Voltage-Min:
2.5 V
Output Voltage-Nom:
3.3 V
Package Body Material:
UNSPECIFIED
Package Code:
VFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.625 mm
Supply Current-Max (Isup):
2700 mA
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
2500 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.766 mm
TPS63024YFFT Frequently Asked Questions (FAQs)
A good PCB layout for the TPS63024YFFT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, ensure that the output capacitor has a low ESR, the input capacitor is properly sized, and the feedback resistors are chosen correctly. Additionally, the device should be operated within its recommended operating conditions, and the PCB layout should be optimized for minimal noise and parasitic inductance.
The TPS63024YFFT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. Consult the datasheet and thermal design guidelines for more information.
Yes, the TPS63024YFFT is AEC-Q100 qualified and suitable for use in high-reliability and automotive applications. However, additional testing and validation may be required to ensure compliance with specific industry standards and regulations.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, component selection, and thermal design. Use oscilloscopes and other diagnostic tools to identify issues such as oscillations, noise, or overheating. Consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS63024YFFT Overview

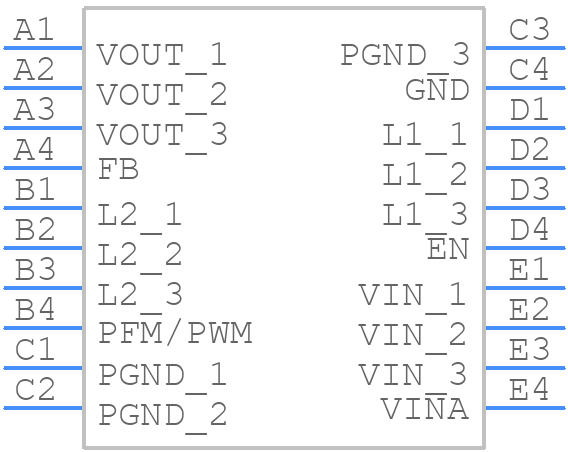

Use the download button to access the TPS63024YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63,
or try a keyword search, such as Switching Regulator or Controllers
