OPERATES IN ADJUSTABLE MODE FROM 2.3V TO 3.6V; ALSO OPERATES IN PFM MODE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.3 V
Input Voltage-Nom:
2.8 V
JESD-30 Code:
R-XBGA-B20
JESD-609 Code:
e1
Length:
2.086 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
2 A
Output Voltage-Max:
3.6 V
Output Voltage-Min:
2.5 V
Package Body Material:
UNSPECIFIED
Package Code:
VFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.625 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
2500 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.766 mm
TPS630250YFFT Frequently Asked Questions (FAQs)
A good PCB layout for the TPS630250YFFT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the specific application requirements, and the input capacitor should be a low-ESR type. A minimum output capacitance of 10uF is recommended.
The TPS630250YFFT is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to consider the thermal design and heat dissipation in the system to ensure reliable operation.
Yes, the TPS630250YFFT is suitable for battery-powered devices due to its low quiescent current and high efficiency. However, it's essential to consider the battery life and power consumption requirements of the system to ensure optimal performance.
To troubleshoot issues with the TPS630250YFFT, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component values against the recommended guidelines. Use an oscilloscope to measure the output voltage ripple and input voltage noise. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS630250YFFT Overview

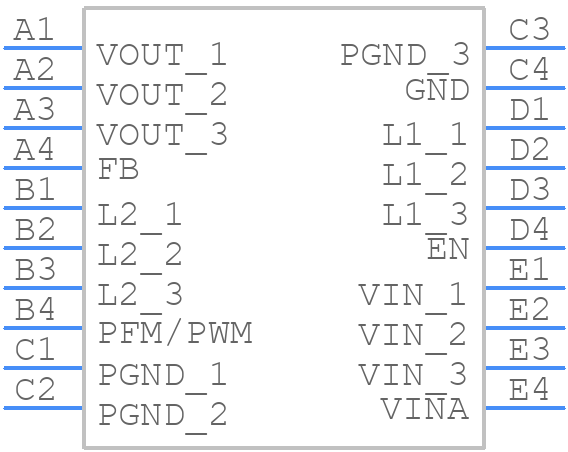

Use the download button to access the TPS630250YFFT schematic symbol, PCB footprint, and 3D model.
