Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage drops and ensure stable operation. Output capacitors should have low ESR and high capacitance to filter the output voltage. Refer to the datasheet for specific recommendations and calculations.
While the datasheet specifies an operating temperature range of -40°C to 85°C, it's essential to consider the device's power dissipation and thermal resistance (θJA) when designing for high-temperature applications. Ensure proper heat sinking and thermal management to maintain a safe junction temperature (TJ) below 125°C.
The TPS630251YFFT has built-in overcurrent protection, but it's recommended to add external circuitry to detect and respond to faults, such as overvoltage, undervoltage, and short-circuit conditions. Use the device's EN pin to enable or disable the converter in response to fault conditions.
While the datasheet specifies a wide input voltage range of 2.5V to 5.5V, the device's efficiency is optimized when the input voltage is between 3.3V and 4.2V. Operating outside this range may reduce efficiency and increase power losses.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS630251YFFT Overview

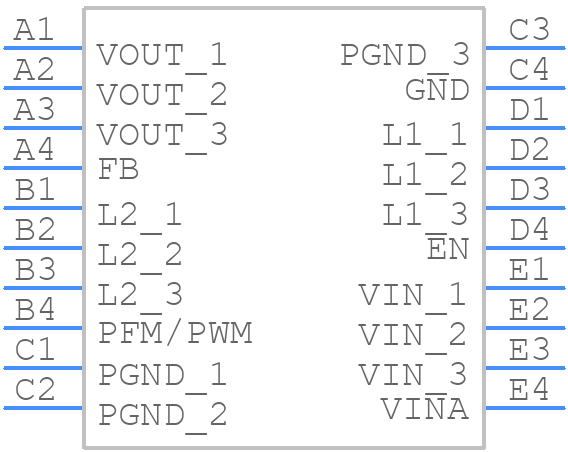

Use the download button to access the TPS630251YFFT schematic symbol, PCB footprint, and 3D model.
