A good PCB layout for the TPS630252YFFT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it is recommended to use a minimum output capacitance of 10uF, and to place a 1uF ceramic capacitor in parallel with the output capacitor. Additionally, the input voltage should be well-regulated and the input capacitor should be placed close to the device.
The maximum ambient temperature range for the TPS630252YFFT is -40°C to 125°C. However, the device can operate up to 150°C with derating.
Yes, the TPS630252YFFT is suitable for high-vibration environments. The device is qualified to withstand vibrations up to 10g peak acceleration. However, it is recommended to follow proper PCB mounting and soldering techniques to ensure the device remains securely attached to the PCB.
To troubleshoot issues with the TPS630252YFFT, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is not operating in a high-temperature environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS630252YFFT Overview

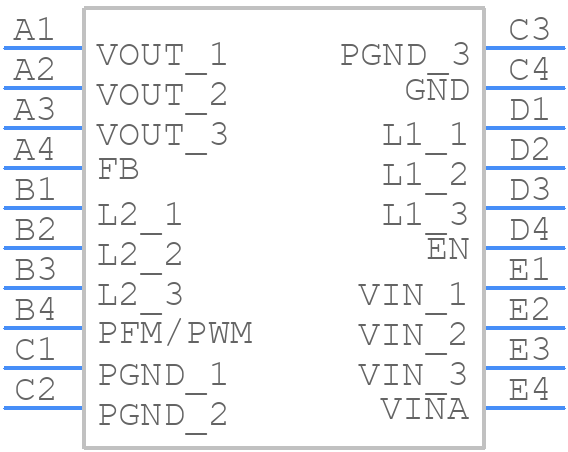

Use the download button to access the TPS630252YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
