OPERATES IN ADJUSTABLE MODE FROM 2.5V TO 5.5V; ALSO OPERATES IN PFM MODE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
5.5 V
Input Voltage-Min:
2.5 V
Input Voltage-Nom:
3.6 V
JESD-30 Code:
S-PQCC-N12
JESD-609 Code:
e4
Length:
2.5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
0.5 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
2.5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
VQCCN
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
2500 kHz
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
2.5 mm
TPS63050RMWT Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS63050RMWT is 17V, but it's recommended to keep it below 15V for optimal performance and reliability.
To ensure the TPS63050RMWT operates within its thermal limits, make sure to provide adequate heat sinking, keep the device away from heat sources, and avoid high ambient temperatures. Also, monitor the device's junction temperature (TJ) and adjust the operating conditions accordingly.
For optimal performance, place the TPS63050RMWT close to the power source, use a solid ground plane, and keep the input and output capacitors as close to the device as possible. Also, ensure that the device's thermal pad is connected to a solid ground plane or a heat sink.
The TPS63050RMWT requires a specific power sequencing to ensure proper operation. Apply the input voltage (VIN) before the enable signal (EN), and ensure that the output voltage (VOUT) is stable before applying the load.
The recommended input capacitor is a 10uF ceramic capacitor with an X7R or X5R dielectric, and the recommended output capacitor is a 22uF ceramic capacitor with an X7R or X5R dielectric. However, the actual capacitor values may vary depending on the specific application requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS63050RMWT Overview

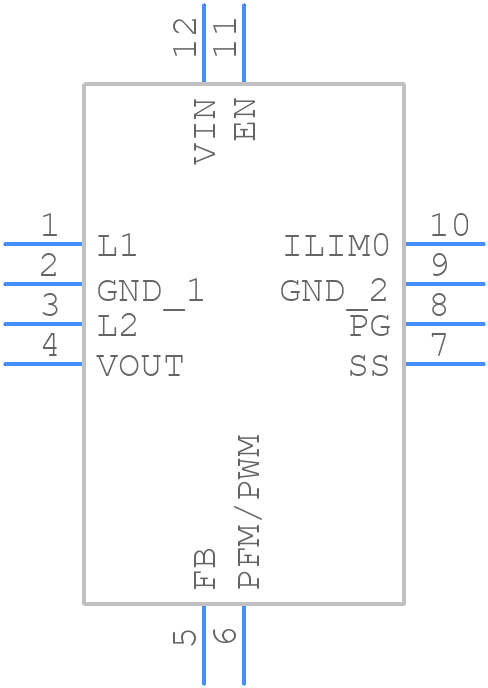

Use the download button to access the TPS63050RMWT schematic symbol, PCB footprint, and 3D model.
