TPS630701RNMT - Texas Instruments

Description: TEXAS INSTRUMENTS - TPS630701RNMT - DC/DC CONV, BUCK-BOOST, 2.4MHZ, VQFN-15

Download TPS630701RNMT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

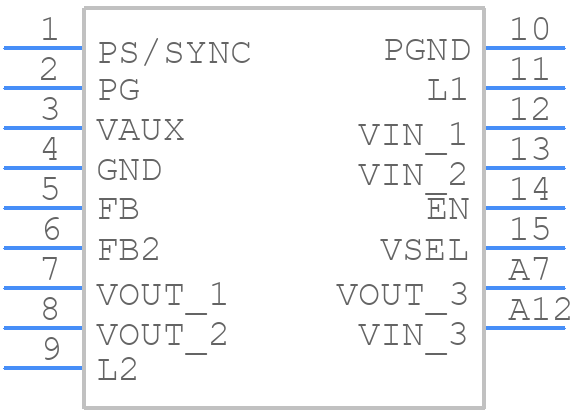

TPS630701RNMT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS630701RNMT - Texas Instruments PCB footprint - Other - Other - TPS630701RNMT-1
click to zoom
3D Models
TPS630701RNMT - Texas Instruments - 3D model - Other - TPS630701RNMT-1
click to zoom

TPS630701RNMT Details

  • Manufacturer Part Number:

    TPS630701RNMT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-08-04

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    16 V

  • Input Voltage-Min:

    2 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PQCC-N15

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2800 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TPS630701RNMT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS630701RNMT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, it is recommended to use a minimum output capacitance of 10uF with an ESR of 100mΩ or less. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (1nF to 10nF) in parallel with the output capacitor.
  • The maximum ambient temperature range for the TPS630701RNMT is -40°C to 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly.
  • Yes, the TPS630701RNMT is suitable for high-vibration environments. The device is designed to withstand vibrations up to 10g peak acceleration. However, it is recommended to follow proper PCB mounting and soldering techniques to ensure the device remains securely attached to the PCB.
  • The power dissipation of the TPS630701RNMT can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency of the device can be obtained from the datasheet. It is recommended to use a thermal pad and a heat sink to ensure proper heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS630701RNMT Overview

Use the download button to access the TPS630701RNMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63, or try a keyword search, such as Switching Regulator or Controllers
