A good PCB layout for the TPS630702RNMT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, it is recommended to use a minimum output capacitance of 10uF with an ESR of 100mΩ or less. Additionally, the output voltage can be stabilized by adding a small ceramic capacitor (1uF to 10uF) in parallel with the output capacitor.
The maximum ambient temperature range for the TPS630702RNMT is -40°C to 85°C. However, the device can operate up to 125°C junction temperature, but the ambient temperature should be derated accordingly.
Yes, the TPS630702RNMT is suitable for use in high-vibration environments. However, it is recommended to ensure that the device is properly soldered to the PCB and that the PCB is securely fastened to the system to prevent mechanical stress.
To troubleshoot issues with the TPS630702RNMT, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly soldered to the PCB and that the PCB layout is correct. Check for any signs of overheating, and ensure that the device is operated within its recommended operating conditions.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS630702RNMT Overview

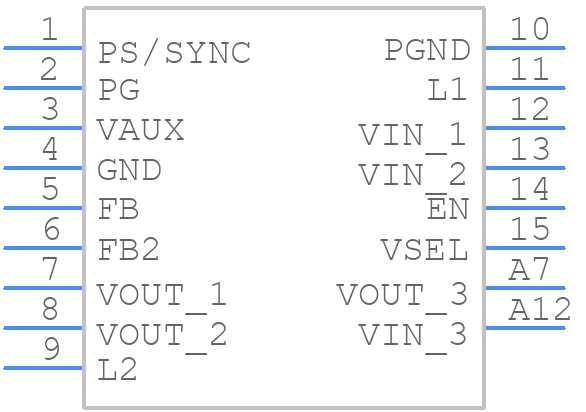

Use the download button to access the TPS630702RNMT schematic symbol, PCB footprint, and 3D model.
