TPS631013YBGR - Texas Instruments

Description: Switching Voltage Regulators 1.6-V to 5.5-V input voltage 1.5-A buck-

Download TPS631013YBGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

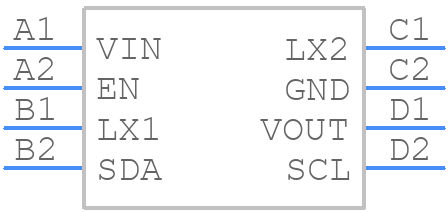

TPS631013YBGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS631013YBGR - Texas Instruments PCB footprint - BGA - BGA - YBG0008_2025-1
click to zoom
3D Models
TPS631013YBGR - Texas Instruments - 3D model - BGA - YBG0008_2025-1
click to zoom

TPS631013YBGR Details

  • Manufacturer Part Number:

    TPS631013YBGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.6 V

  • Input Voltage-Nom:

    3.8 V

  • JESD-30 Code:

    R-XBGA-B8

  • JESD-609 Code:

    e1

  • Length:

    1.763 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    5.5 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA8,2X4,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    0.865 mm

TPS631013YBGR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, and using a solid ground plane to reduce noise and EMI.
  • The selection of the inductor depends on the output current, switching frequency, and output voltage ripple requirements. TI provides an inductor selection guide in the datasheet, and online tools such as the TI Inductor Selection Tool can also be used to find a suitable inductor.
  • The TPS63101YBGR is rated for operation up to 85°C ambient temperature, but the maximum junction temperature is 125°C. It's essential to ensure that the device is properly cooled and that the thermal design is adequate to prevent overheating.
  • To ensure stability, it's crucial to follow the recommended component values and PCB layout guidelines in the datasheet. Additionally, the output capacitor should be selected to provide sufficient filtering and stability, and the input capacitor should be chosen to provide adequate decoupling.
  • A low-ESR ceramic capacitor with a value of 4.7uF to 10uF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and have a low impedance path to the ground plane to minimize noise and EMI.
