TPS63710DRRT - Texas Instruments

Description: Low Noise, 1A Synchronous Inverting Buck Converter in 3x3 WSON Package

Download TPS63710DRRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

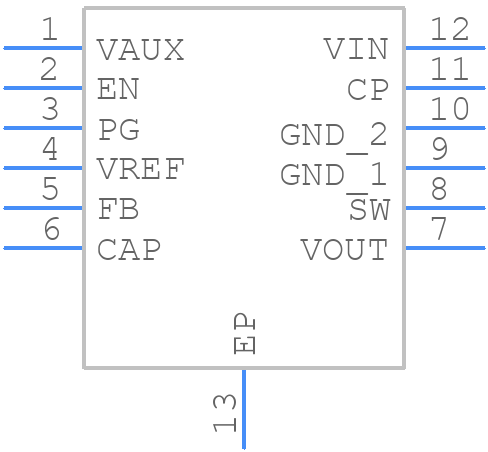

TPS63710DRRT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS63710DRRT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRR0012C
click to zoom
3D Models
TPS63710DRRT - Texas Instruments - 3D model - Small Outline No-lead - DRR0012C
click to zoom

TPS63710DRRT Details

  • Manufacturer Part Number:

    TPS63710DRRT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-10-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES IN ADJUSTABLE MODE FROM -5.5 TO -1V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    14 V

  • Input Voltage-Min:

    3.1 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    -1 V

  • Output Voltage-Min:

    -5.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS63710DRRT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS63710DRRT involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the input voltage. The output capacitor should have a capacitance value of at least 10uF and an ESR of less than 100mΩ. The input capacitor should have a capacitance value of at least 1uF and an ESR of less than 100mΩ.
  • The TPS63710DRRT can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures.
  • To ensure stability, follow the recommended PCB layout, choose the right input and output capacitors, and ensure that the output voltage is within the recommended range. Also, avoid using long input and output traces, and minimize the distance between the device and the input and output capacitors.
  • The maximum output current of the TPS63710DRRT is 1A. However, the device can deliver higher currents for short durations. It's recommended to check the device's thermal performance and power dissipation before operating it at high output currents.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS63710DRRT Overview

Use the download button to access the TPS63710DRRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS63, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
