TPS63810YFFR - Texas Instruments

Description: Switching Voltage Regulators 2.5-A high-efficient buck-boost converter with interface for dynamic voltage scaling 15-DSBGA -40 to 85

Download TPS63810YFFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

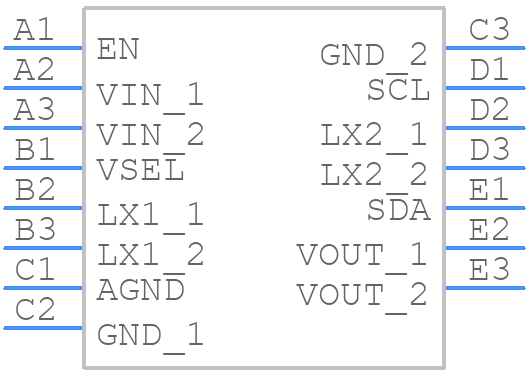

TPS63810YFFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS63810YFFR - Texas Instruments PCB footprint - BGA - BGA - YFF0015
click to zoom
3D Models
TPS63810YFFR - Texas Instruments - 3D model - BGA - YFF0015
click to zoom

TPS63810YFFR Details

  • Manufacturer Part Number:

    TPS63810YFFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-08-10

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES CONTROL TECHNIQUE IN PFM

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.2 V

  • Input Voltage-Nom:

    3.6 V

  • JESD-30 Code:

    R-PBGA-B15

  • JESD-609 Code:

    e1

  • Length:

    2.255 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.5 A

  • Output Voltage-Max:

    5.2 V

  • Output Voltage-Min:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA15,3X5,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    3100 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.344 mm

TPS63810YFFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS63810YFFR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. For output capacitors, choose ones with a low ESR and a high capacitance value. The recommended capacitance values are 10uF to 22uF for the input and 22uF to 47uF for the output.
  • The maximum ambient temperature range for the TPS63810YFFR is -40°C to 125°C. However, the device can operate up to 150°C with a reduced output current.
  • To ensure stability, make sure the input and output capacitors are properly selected, and the PCB layout is optimized. Also, ensure that the output voltage is within the recommended range, and the output current is within the specified limit.
  • Yes, the TPS63810YFFR is suitable for high-reliability applications. It is built with a robust design and has undergone rigorous testing to ensure its reliability. However, it is essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified limits.
