TPS63901YCJR - Texas Instruments

Description: 5.5-V buck-boost converter with 75-nA operating IQ in WCSP package

Download TPS63901YCJR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

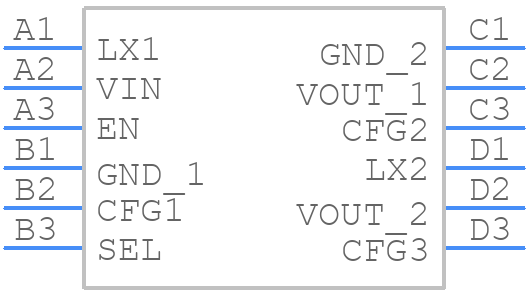

TPS63901YCJR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS63901YCJR - Texas Instruments PCB footprint - BGA - BGA - YCJ0012
click to zoom
3D Models
TPS63901YCJR - Texas Instruments - 3D model - BGA - YCJ0012
click to zoom

TPS63901YCJR Details

  • Manufacturer Part Number:

    TPS63901YCJR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    1.8 V

  • Input Voltage-Nom:

    3 V

  • JESD-30 Code:

    R-PBGA-B12

  • JESD-609 Code:

    e1

  • Length:

    1.46 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5 V

  • Output Voltage-Min:

    1.8 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,3X4,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.35 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2000 kHz

  • Technology:

    BICMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.11 mm

TPS63901YCJR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS63901YCJR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. For output capacitors, choose ones with a low ESR and a high capacitance value. The recommended capacitance values are 10uF to 22uF for the input capacitor and 22uF to 47uF for the output capacitor.
  • The TPS63901YCJR can handle a maximum input voltage of 17V. Exceeding this voltage may damage the device.
  • Ensure good airflow around the device, use a heat sink if necessary, and keep the device's junction temperature (TJ) below 125°C. Monitor the device's temperature using the thermal monitoring pin (TMP) and adjust the system design accordingly.
  • Yes, the TPS63901YCJR is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Ensure proper thermal management and derate the device's output current accordingly.
